Product code: 4751029890610

Order product!

(delivery time 3-5 days)

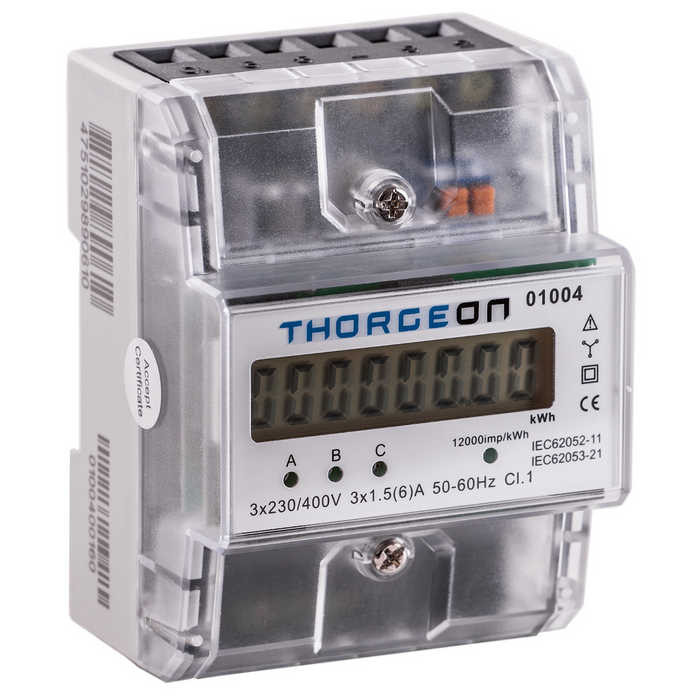

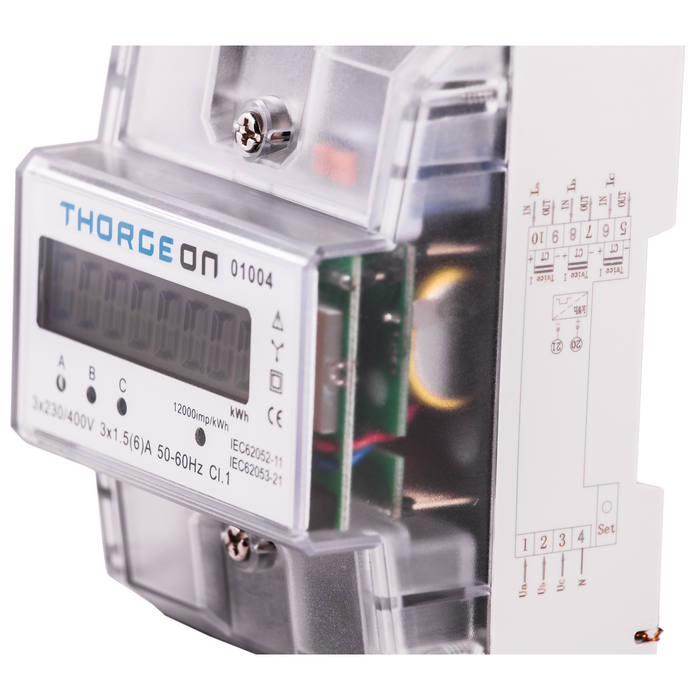

Technical information

• Rated current (In): 1. 5 A
• Maximum current (Imax): 6 A
• Nominal voltage (Un) NL: 230 V
• Frequency: 50-60 Hz
• Pole system: Four conductors
• Impulse rate: 400 Imp/kWh (kvarh)
• Mounting method: DIN rail adapter (DRA)
• Module width: 4
• Width: 76 mm
• Depth: 65 mm
• Height: 100 mm
• Protection class (IP): IP20

• Measuring device type: Electronic
• Model: Transformer type measurement
• Energy type: Effective current
• Suitable for: Acquisition
• Tariff: Single tariff
• Tariff management: Internal
• Pulse output: Electric
• Expression type: Digital
• Interface Type: None
• Built-in battery: Yes
• LCD display: Yes
